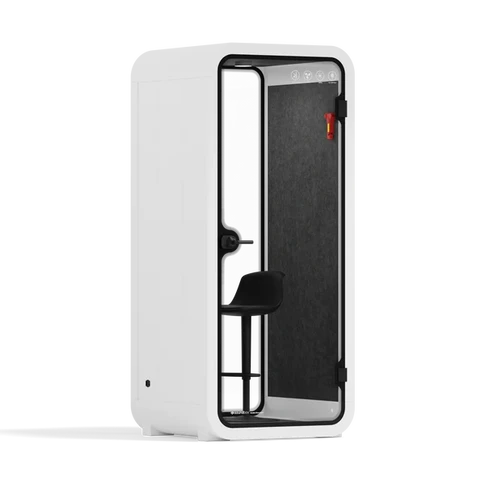

S Model
For one person
Phone Booth / Solo Zoom Room
The acoustic office booth by Sound Booth Store is a space to gain clarity and dedicated focus.
Gather peace of mind and be proactive in the task at hand.
Available with several different furniture options for various functions from a 1 - 2 person phone booth to a 2-person occasional meeting pod,
or a single-person workstation with a desk and modern height adjustable office chair.
Soundproof
In our designing process, we fully utilize acoustic simulation software such as INSUL MARSHALL ACOUSTIC to iterate and obtain optimal acoustic performance.
Our booth is consistent with the standard of environmental rating Design value: Rw+Ctr 25 db (+5 db) and RT0.75 s (+0.1 s).
Ventilation
Low noise air ventilation system with maze-like internal layout to ensure necessary air circulation in three minutes, while preserving soundproofing attributes of the booth.
Lighting
Equipped with 4000 K daylight color temperature LED lighting system (150 LX), it would satisfy the needs of normal activities. In the event of additional power requirements, a backup power supply is readily installed inside the booth.
S Model
For one person

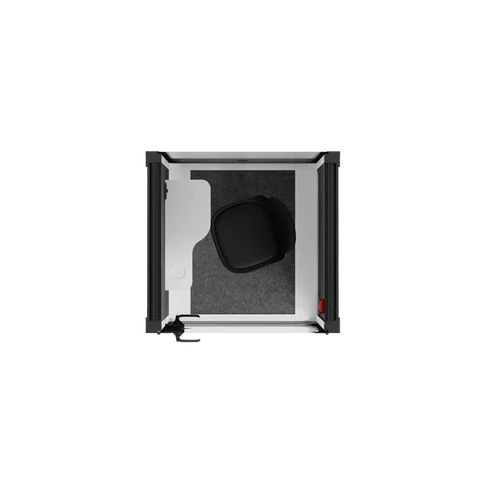

Dimensions
Internal Size:
Height: 214cm Width: 84cm
Depth: 90cm
External Size:
Height: 230cm Width: 100cm Depth: 93.6cm
Ventilation
Singular Turbo Fan, Highly efficient airflow at 78m³/h refreshing air every two minutes,
guaranteeing excellent oxygen rates.
A low-noise air system via multi-channel air ducts allows minimum noise disturbance inside and out.
Sound / Acoustics
Leading The Sound Pod Industry
STC 30dB (±5dB) &
RT0.25s (±0.1s)
Daiki Verified
ISO 23351-1
Materials
External Shell
Aviation Type Alloy
Nanometer PP Finish
Internal Panels
Carbon Composite
≤0.071kg CO2e
Glass
Similar To High Speed Trains
≤0.4MJ
Damping Feet
Vibration control
Electrical / Lighting
*4000k (150Lx) Daylight LED
*Multiple Power Outlets, 220- 24V + USB, USB-C
*Energy Saving Motion Sensor
*Blue Tooth Audi System
*Aux Lossless Port

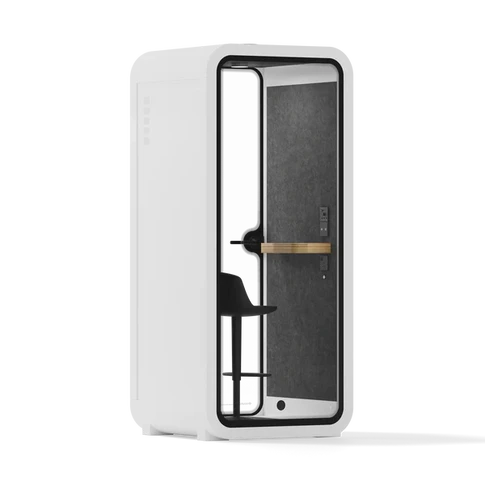

Optional Furniture
Optional furniture built specifically for these pods is an excellent option for comfort and style.
The stool is adjustable via a hydraulic lift; the work shelf is plywood style front and white laminated top.
Safety
Emergency Safety Hammer
Included For Internal Fitting
Fire Rated Foam
UK Fire foam where required.
Sprinkler / Mains Fire Alarm
Laser cut and usable if required
Formaldehyde Free
No wood or glue
Sustainability
Recycled materials approx
≥180kg (12m²/0.66m³) each
Carbon Footprint
≤0.071kg CO2e
Energy Consumption
≤0.4MJ
